Description
The MCK43A-F is the RPC-2.92 jack (female) counterpart covering DC to 43.5 GHz.

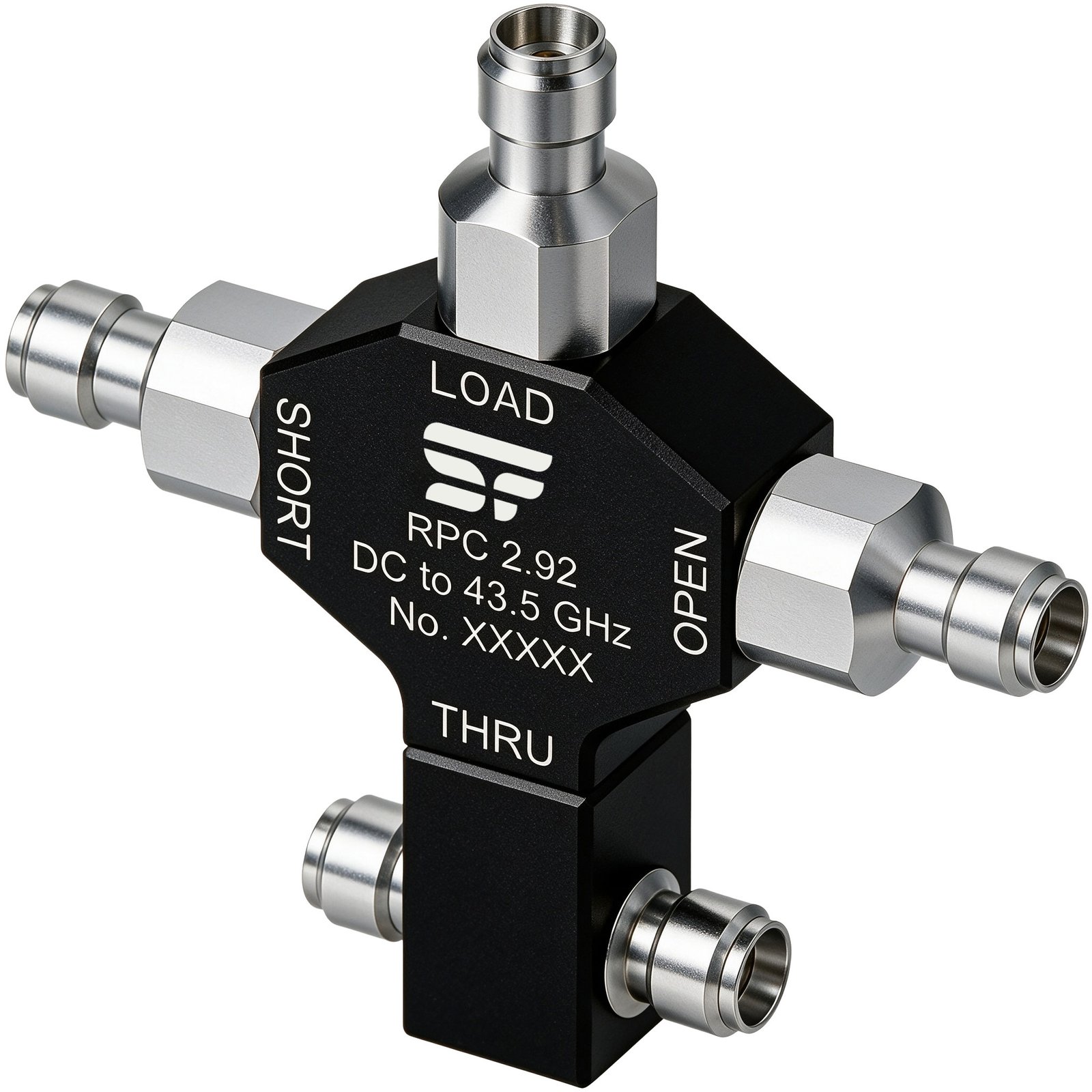

MCK43A-F Mechanical Calibration Kit, RPC-2.92 Jack, DC – 43.5 GHz
RPC-2.92 jack calibration kit covering DC to 43.5 GHz with full documentation.
Specifications
| Frequency Range | DC to 43.5 GHz |
|---|---|
| Connector | RPC-2.92 jack (female) |
| Thru Return Loss | ≥ 32 dB (DC–4 GHz) |
| Load DC Resistance | 50 Ω ± 0.5 Ω |
| Kit Contents | Standard definitions card, test results documentation, hard shell case, protection caps |
| Materials | CuBe gold-plated contacts (min. 1.27 µm over nickel); passivated stainless steel |
| Mating Cycles | ≥ 500 |
| Torque | Recommended 0.90 N·m; maximum 1.70 N·m |
