RPC-3.50 plug (male) calibration kit, DC to 26.5 GHz, with thru return loss ≥ 34 dB and printed standard definitions for nearly all VNAs.

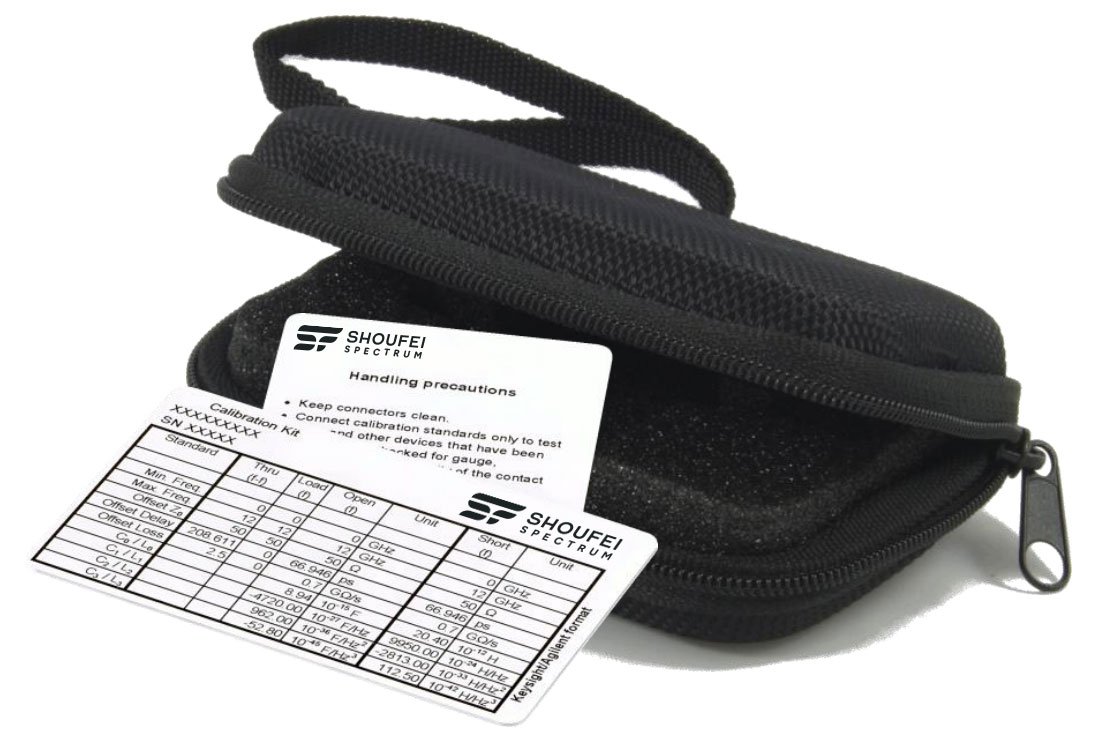

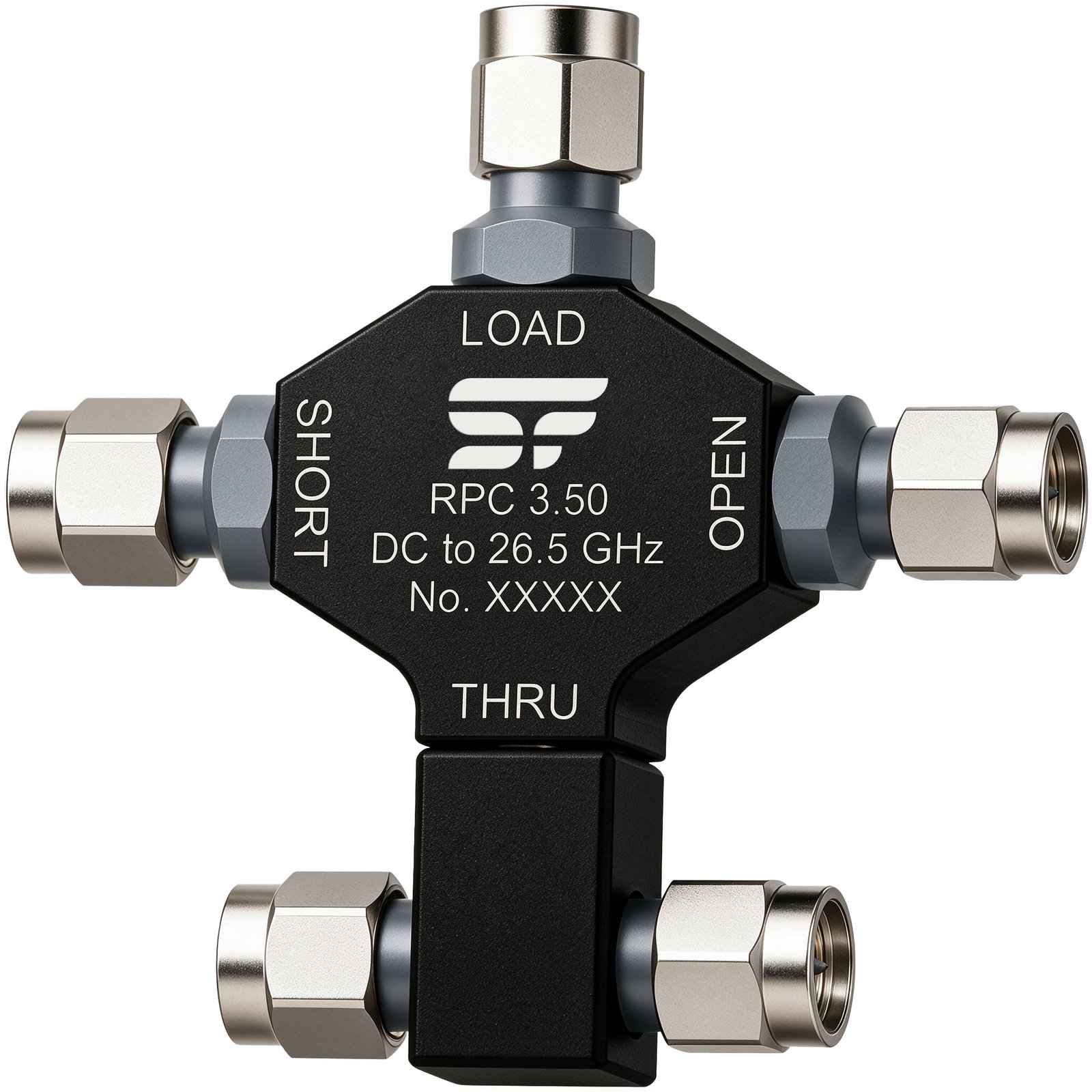

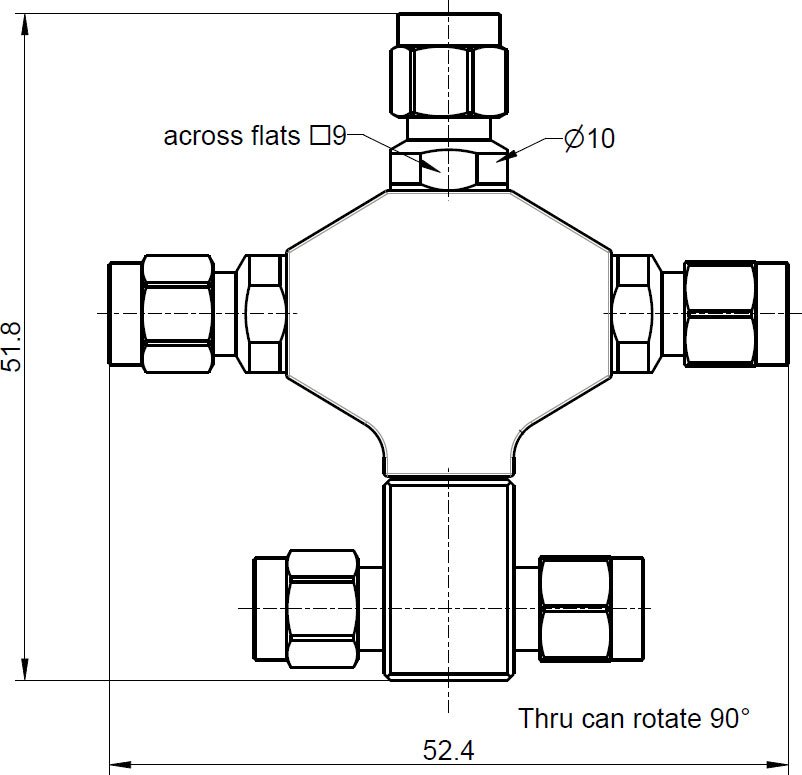

The MCK26A-M is an RPC-3.50 plug mechanical calibration kit covering DC to 26.5 GHz (interface per IEC 61169-23, mechanically compatible with RPC-2.92 and SMA). It ships with a printed standard definitions card usable on nearly all vector network analyzers, test results documentation, a hard shell case and protection caps.
| Frequency Range | DC to 26.5 GHz |
|---|---|
| Connector | RPC-3.50 plug (male), per IEC 61169-23; compatible with RPC-2.92 and SMA |
| Thru Return Loss | ≥ 34 dB (DC–4 GHz); ≥ 32 dB (4–8 GHz); ≥ 30 dB (8–26.5 GHz) |
| Load Return Loss | ≥ 40 dB (DC–4 GHz); ≥ 35 dB (4–8 GHz); ≥ 30 dB (8–26.5 GHz) |
| Open Phase Error | ≤ 1.0° (DC–4 GHz); ≤ 2.0° (4–8 GHz); ≤ 3.0° (8–26.5 GHz) |
| Short Phase Error | ≤ 1.0° (DC–4 GHz); ≤ 2.0° (4–8 GHz); ≤ 3.0° (8–26.5 GHz) |
| Load DC Resistance | 50 Ω ± 0.5 Ω |
| Kit Contents | Standard definitions card, test results documentation, hard shell case, protection caps |
| Materials | CuBe gold-plated contacts (min. 1.27 µm over nickel); passivated stainless steel |
| Mating Cycles | ≥ 500 |
| Torque | Recommended 0.90 N·m; maximum 1.70 N·m |
