ECK40 Electronic Calibration Kit, 100 kHz – 40 GHz

ECK40 Electronic Calibration Kit, 100 kHz – 40 GHz

2-port electronic calibration to 40 GHz with 2.92 mm connectors — ideal for the VNA4435 and i-CTS multi-port systems.

Download Datasheet
SKU: SF-ECK40 Category:

Description

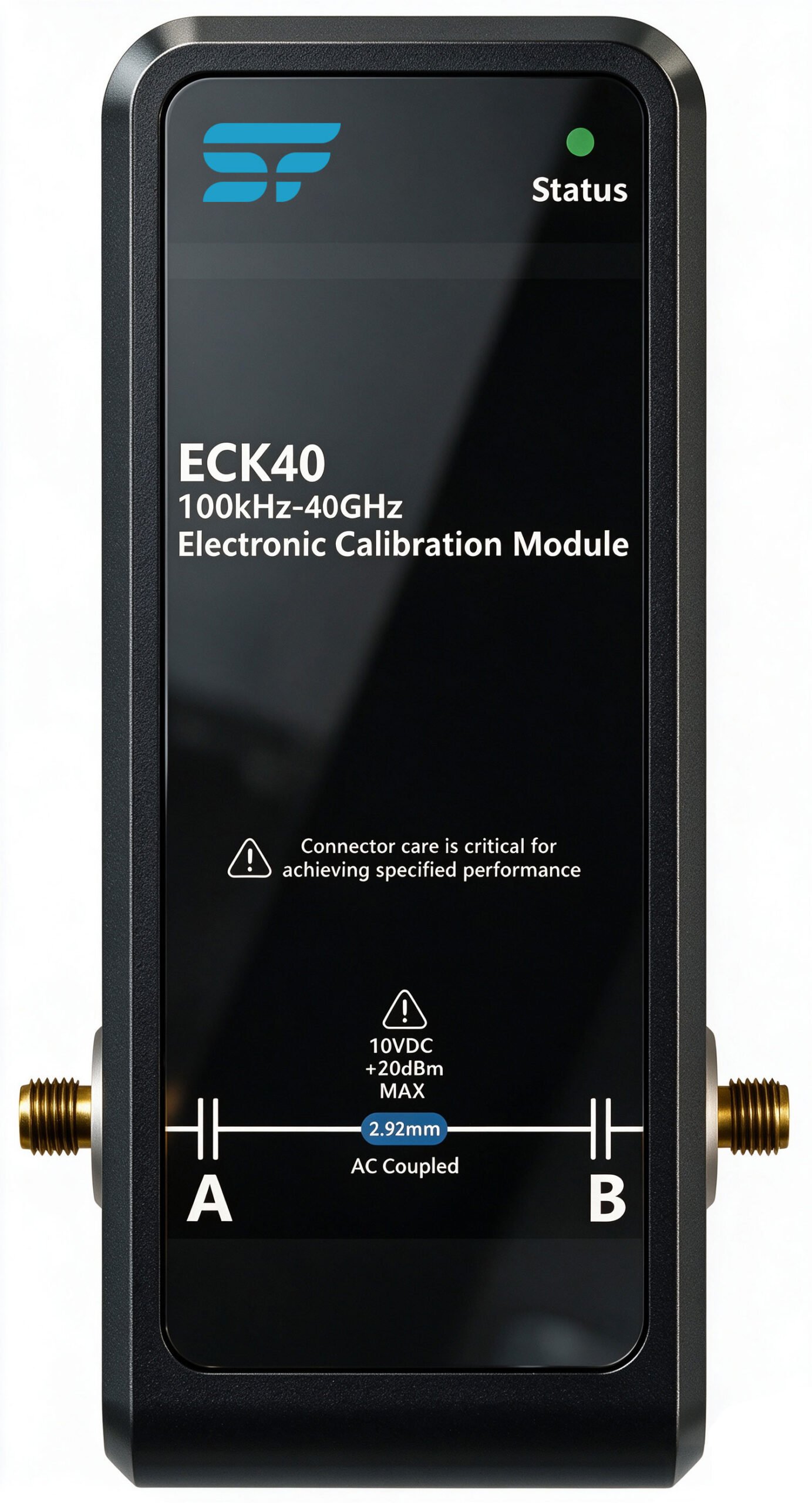

The ECK40 electronic calibration kit provides 2-port electronic calibration from 100 kHz to 40 GHz with 2.92 mm female connectors. In the i-CTS high-speed cable test system, two-port ECK modules allow a full 64-port calibration in only 36 steps.

Key features

  • 100 kHz to 40 GHz, 2 ports
  • 2.92 mm female connectors, 50 Ω
  • Compact: 50 × 120 × 31 mm, < 350 g
  • USB Type-B control; preheat/ready indicators

Specifications

Frequency Range

100 kHz to 40 GHz
Number of Ports

2 ports
Port Connector

2.92 mm, female
Port Impedance

50 Ω
Damage RF Level

20 dBm
Max DC Level

10 V
USB Port

Type B receptacle, connection to VNA
Indicator Light

Red: preheat; Green: ready
Power Consumption

< 5 W
Dimensions

50 mm W × 120 mm L × 31 mm H
Weight

< 350 g
Recommended Calibration Cycle

12 months
